Hyderabad: The injection borewells set up by Greater Hyderabad Municipal Corporation (GHMC) in the IT corridor are yielding desired results, even though the RWH pits initiative has flopped.
In Serilingampally circle, there are seven injection bore- wells. Cyber Towers (Madhapur), Shilpa Layout and Doctors Colony (Madhapur) are among areas where these structures yielded good results.
The borewells channelise water from the stagnation point and recharge the groundwater. The rainwater will be diverted to these borewells through pipes. The average cost of building these borewells is Rs 1.5 lakh and the ground is dug for about 40 to 80 feet, depending on the site.
Owners of the commercial establishments as well as residents said that they have witnessed substantial improvement in the ground water level and their bores are not drying up within a month unlike earlier. “Before injection borewells were built, the bore in my house used to get dry in May, but now the situation has improved,” said B Praveen, resident of Doctors Colony, Madhapur. “Plans are under way to build injection borewells in parks to replenish groundwater,” said a GHMC official.
Vardhman Envirotech
India’s Passionate rainwater company
This article is published on: Times of India, 24 August, 2020
We would like to spread this for the benefit of fellow Indians.

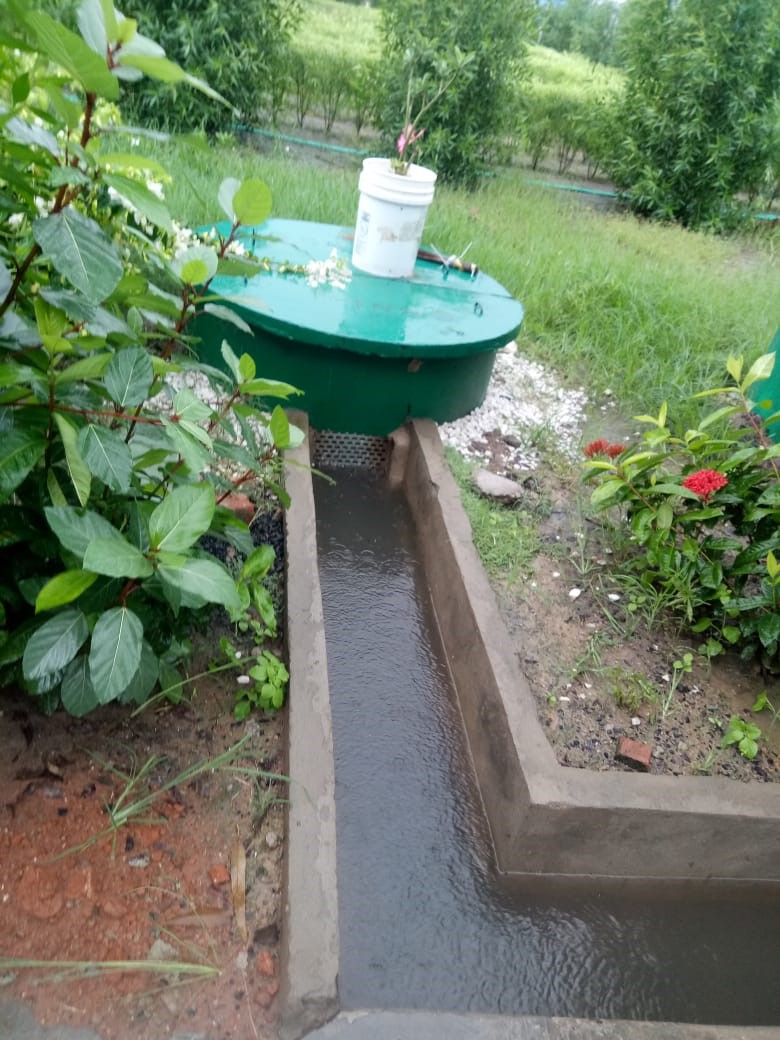

Know what is injection recharge well

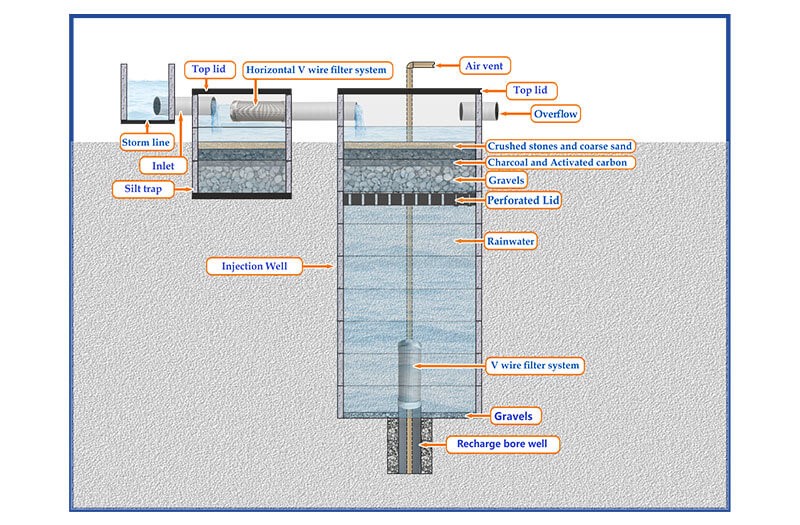

Injection recharge well is a unique technology designed to capture, filter and recharge pure rainwater from large open areas or loose soil into deeper layers of permeable and impervious earth’s strata through unique ‘Non clogging, SS V wire technology for filtration’. This is a proven system to augment ground water level and rejuvenate dried bore wells.
Water logging is a nuisance in any premise. This is not only causing havoc but also results in loss of precious water. Looking at the space availability and recharge requirements in Industrial facility, we have designed unique “Non-Clogging V Wire Technology for Surface water filtration”. Our patent forwarded design is proven for its performance in various terrains across India. This design is primarily aimed at locations with higher surface volume and flow. It is flexible enough to fit even on roadside, garden or integrated with storm channel to capture, filter and recharge surface runoff.
Product Advantages
- Modular, ready to use
- Works on gravity
- Silt trap and Main unit with Five stages of filtration
- Major, medium and micro filtration
- User friendly and easy to maintain online system
- Two units of Non clogging SS 304 filter element
- Prevents impurities up to 500 Micron
- Can be integrated with storm channels, garden, loose soil
- No Water loss
- No Electricity
- No Consumables
- No worry; fit it forget it
Product Features
- Ground water recharge is less expensive than surface water
- Efficient compared to over ground storage structures
- Less vulnerable to pollution than surface water
- Improves ground water quality by dilution
- No conveyance or evaporation loss
- Increases productivity of Aquifer
- Reduces soil erosion
- Raises ground water level

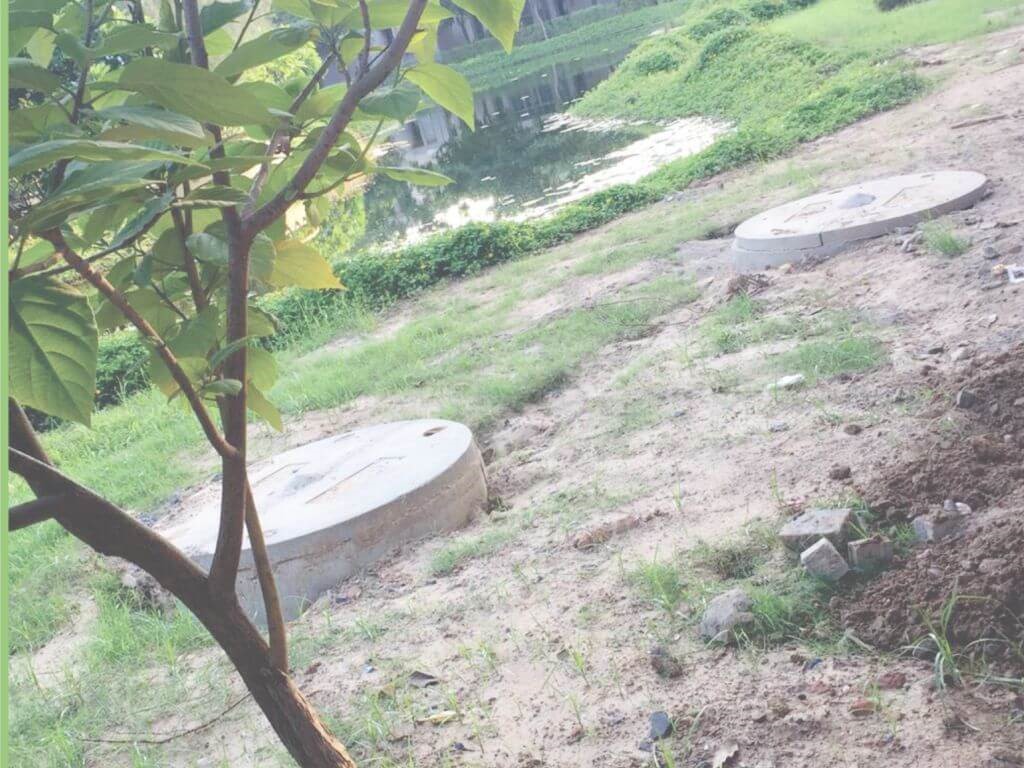

Lake water recharge

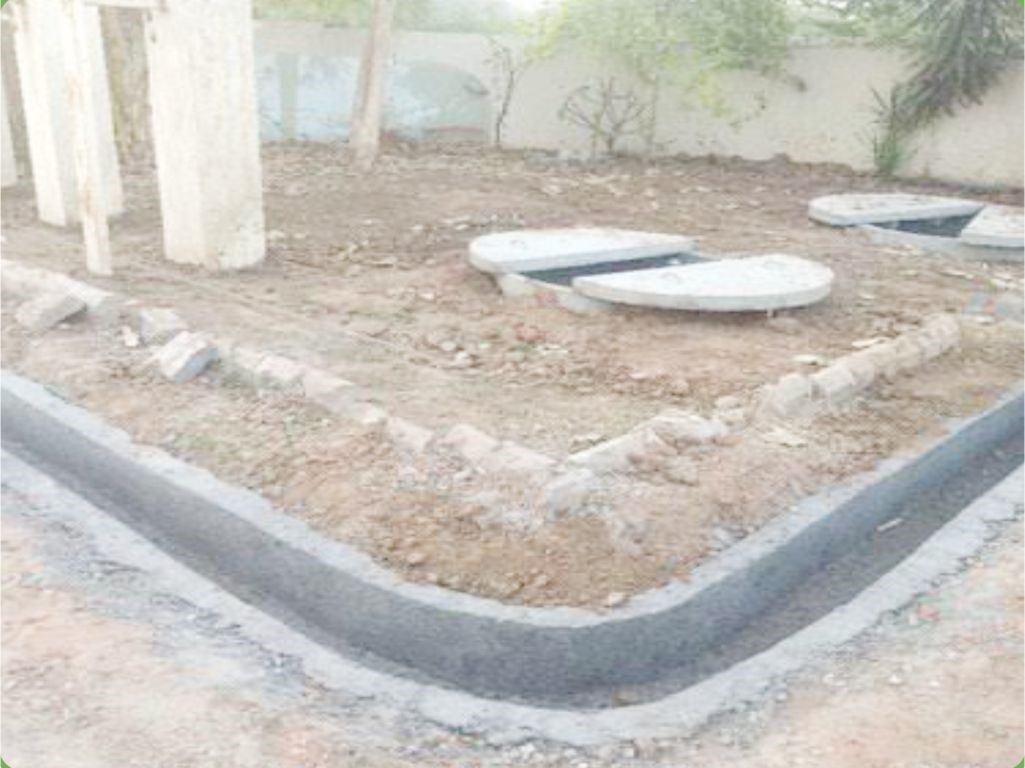

Open storm line recharge

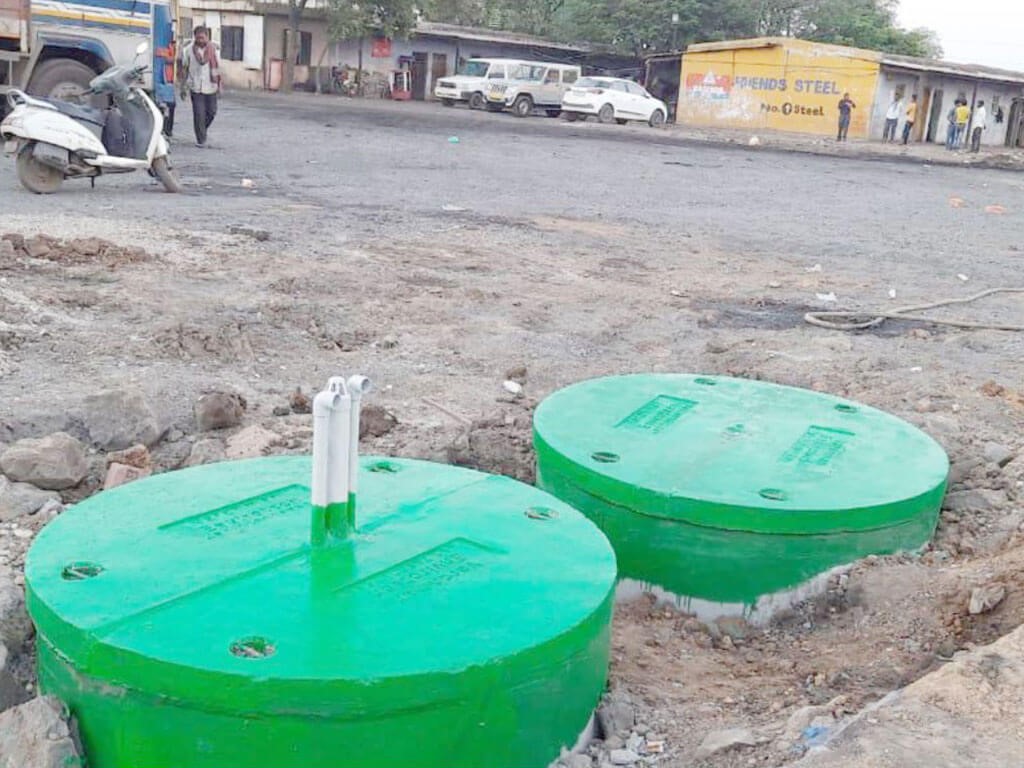

Roadside storm water recharge

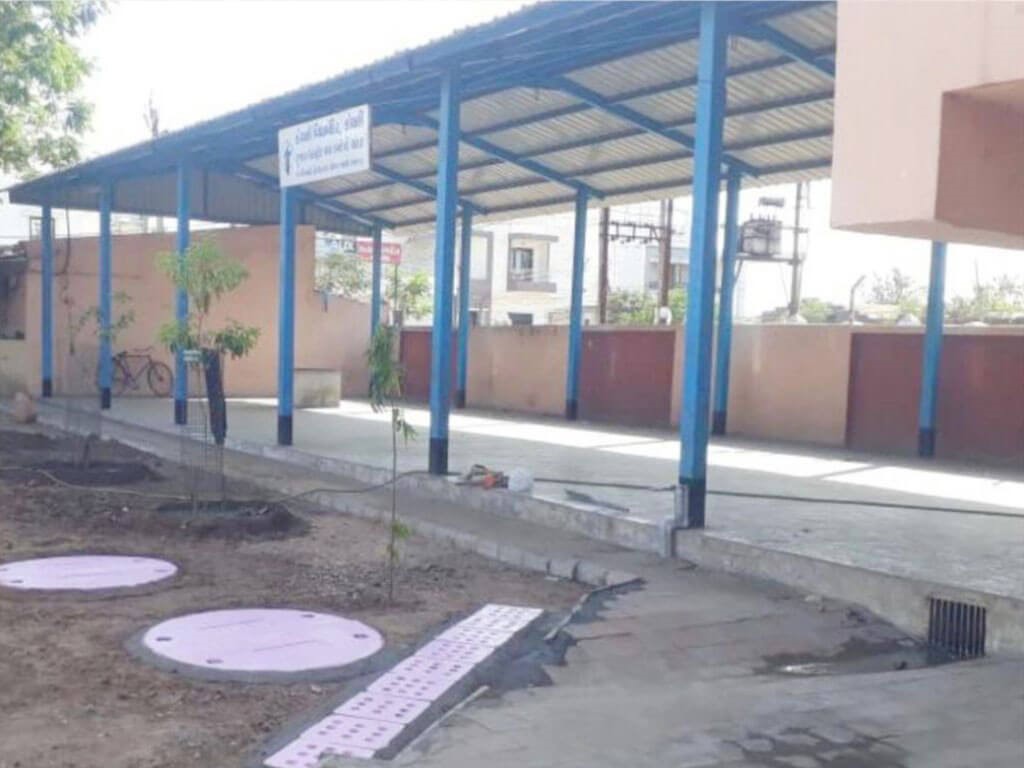

Paved open surface recharge
Lake recharge through Injection Recharge well
Rainwater recharge through Lake facilitates recharge during and after the monsoon. Recharge Rain is a unique Injection well technology designed to capture, filter and recharge pure rainwater from defined Invert level of lake into deeper layers of permeable and impervious earth’s strata through unique ‘Non clogging, SS V wire technology for filtration’. This is a proven system to augment ground water level and rejuvenate dried bore wells.
Advantages
- Recharge is possible even after monsoon season
- Ground water recharge is less expensive than surface water
- Efficient compared to over ground storage structures
- Improves ground water quality by dilution
- No conveyance or evaporation loss
- Increases productivity of Aquifer
- Reduces soil erosion
- Raises ground water level
