NeeRain Rooftop Rain Water Filter
NeeRain Rooftop Rainwater filter is patent forwarded innovation that empowers common man to harvest fresh rainwater without human intervention, without electricity, without recurring expense at negligible labour cost and without maintenance headache.
NeeRain Rooftop Rainwater filter is India’s first No Water loss rainwater filter that is easy, economical, effective and efficient for harvesting fresh rainwater. Fix it yourself, plug and play design of NeeRain Rooftop Rainwater filter is ideal for common man to adopt and live water secure, healthy and happy life.
NeeRain Rooftop Rainwater filter fills the gap between fresh water availability and acute water crisis that our country is facing. Each premise can be equipped with NeeRain Rooftop Rainwater filter and can be easily transformed in water secure site. NeeRain Rooftop Rainwater filter saves the bore well without additional cost for years to gather.
Till date, NeeRain Rooftop Rainwater filters have helped save 30 crore litres of fresh water across India, Asia, Africa and America.
NRN 220: NeeRain rooftop rainwater filter
Features of NeeRain Water Filter
- Two stages of filtration.
- Filter element 1 - SS 304 non-clogging V-wire filter - 500 Micron
- Filter Element 2 - Polymeric filter – 200 Micron
- Transparent Lid, one can see harvesting live.
- Inlet and Outlet size – 110 mm.
- Suitable for a roof area of 150 M2
Advantages of NeeRain Water Filter
- No water loss
- No Stagnant Impurities
- Live Monitoring
- Micro filtration up to 200 Microns
- Low plumbing cost
- Reverse Y filtration
- Ready to fix
- Long performance life
- Saves bore well
- No Maintenance headache
- No recurring cost
- No Consumables
- No Electricity
- No Human Intervention
NSS240: NeeRain SSPro Rooftop Rainwater Filter
Features of NeeRain Water Filter
- Two stages of filtration.
- Filter element 1 - SS 304 non-clogging V-wire filter - 500 Micron
- Filter Element 2 - Polymeric filter – 200 Micron
- Transparent Lid, one can see harvesting live.
- Inlet and Outlet size – 110 mm.
- Suitable for a roof area of 150 M2
Advantages of NeeRain Water Filter
- No water loss
- No Stagnant Impurities
- Live Monitoring
- Micro filtration up to 200 Microns
- Low plumbing cost
- Reverse Y filtration
- Ready to fix
- Long performance life
- Saves bore well
- No Maintenance headache
- No recurring cost
- No Consumables
- No Electricity
- No Human Intervention
NRU 150: NeeRainUltra rooftop rainwater filter
Features of NeeRain Water Filter
- Two stages of filtration.
- Filter element 1 – HDPE Double layer filter element - 400Micron
- Filter Element 2 - Polymeric filter – 200 Micron
- Transparent Lid, one can see harvesting live.
- Inlet and Outlet size – 110 mm.
- Suitable for a roof area of 150 M2
Advantages of NeeRain Water Filter
- No water loss
- No Stagnant Impurities
- Live Monitoring
- Micro filtration up to 200 Microns
- Low plumbing cost
- Reverse Y filtration
- Ready to fix
- Long performance life
- Saves bore well
- No Maintenance headache
- No recurring cost
- No Consumables
- No Electricity
- No Human Intervention

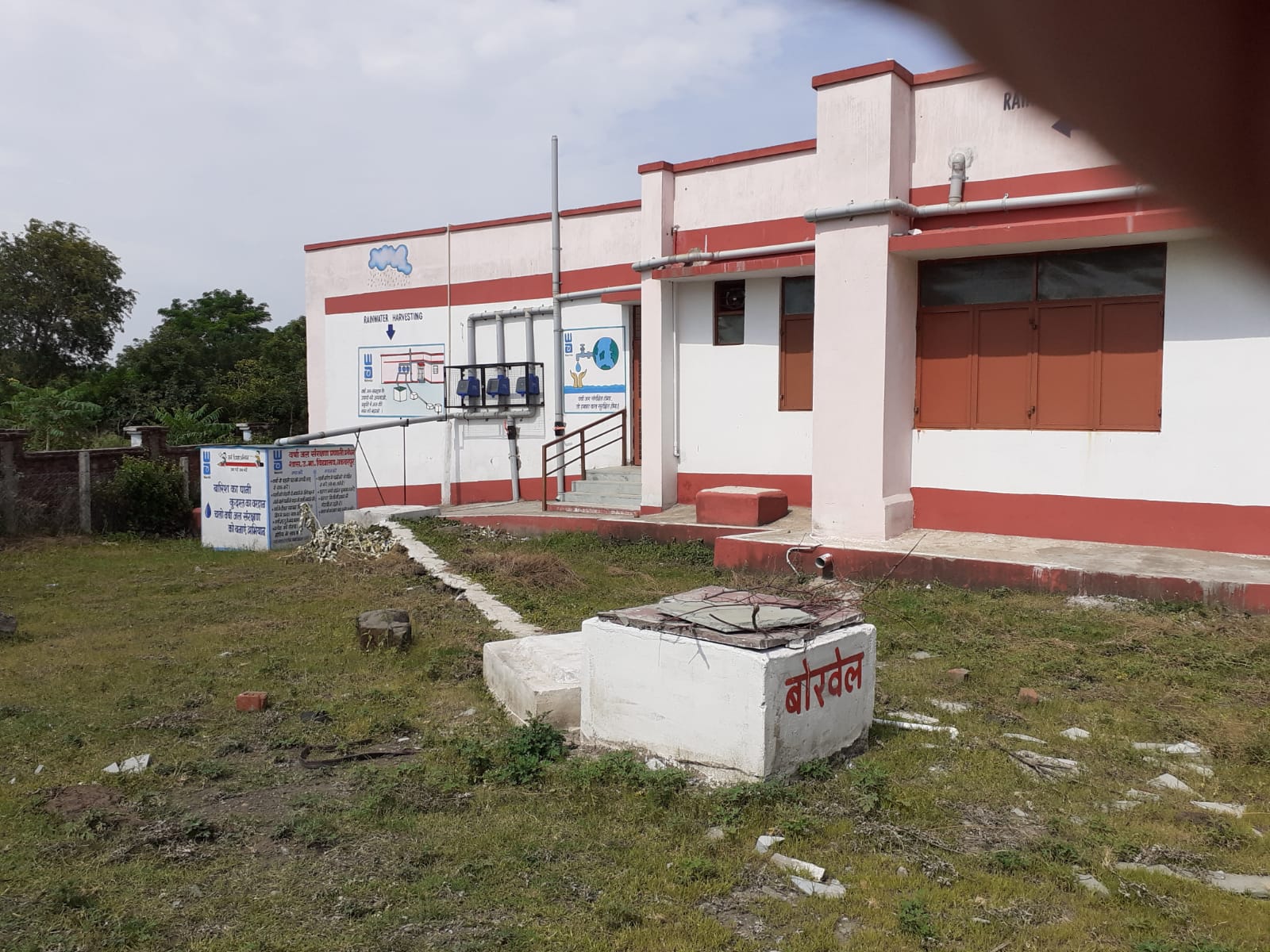

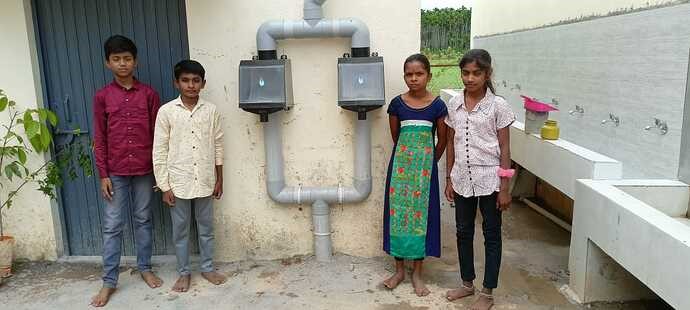

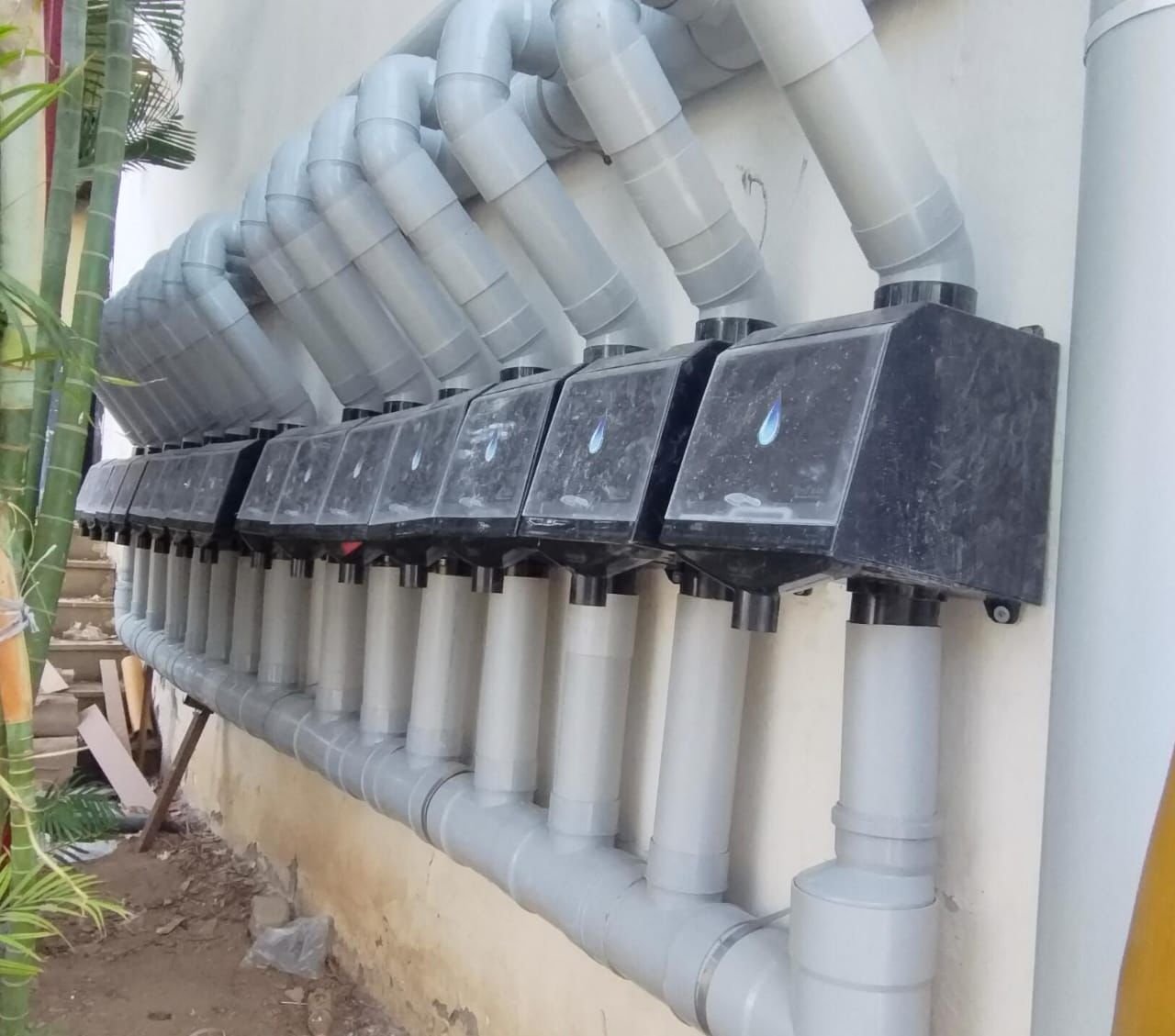

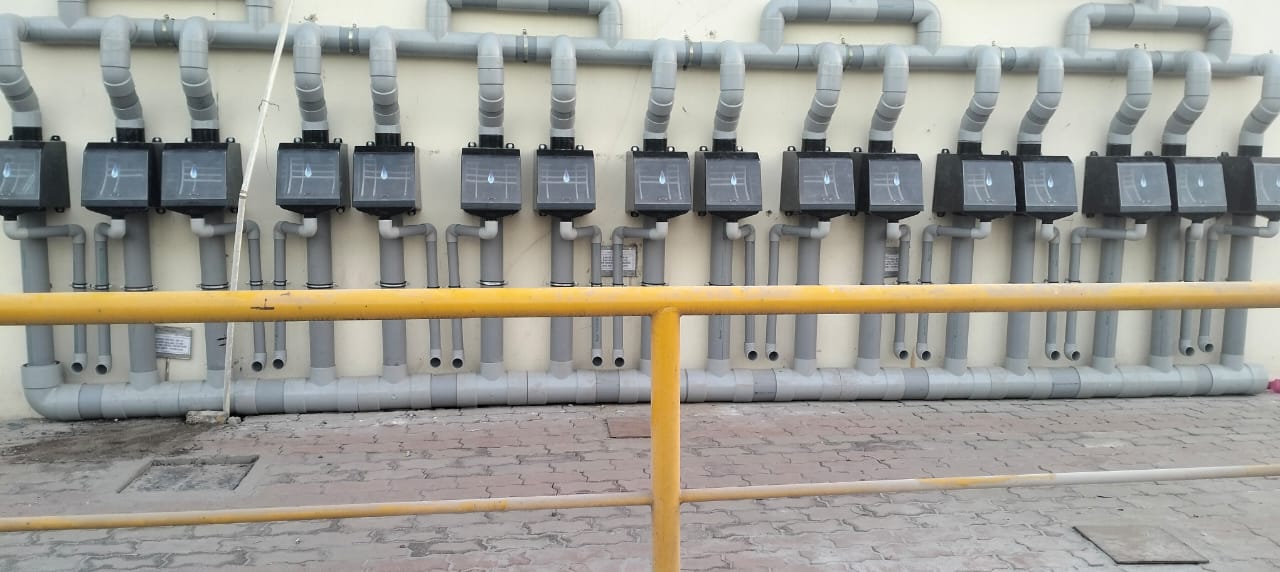

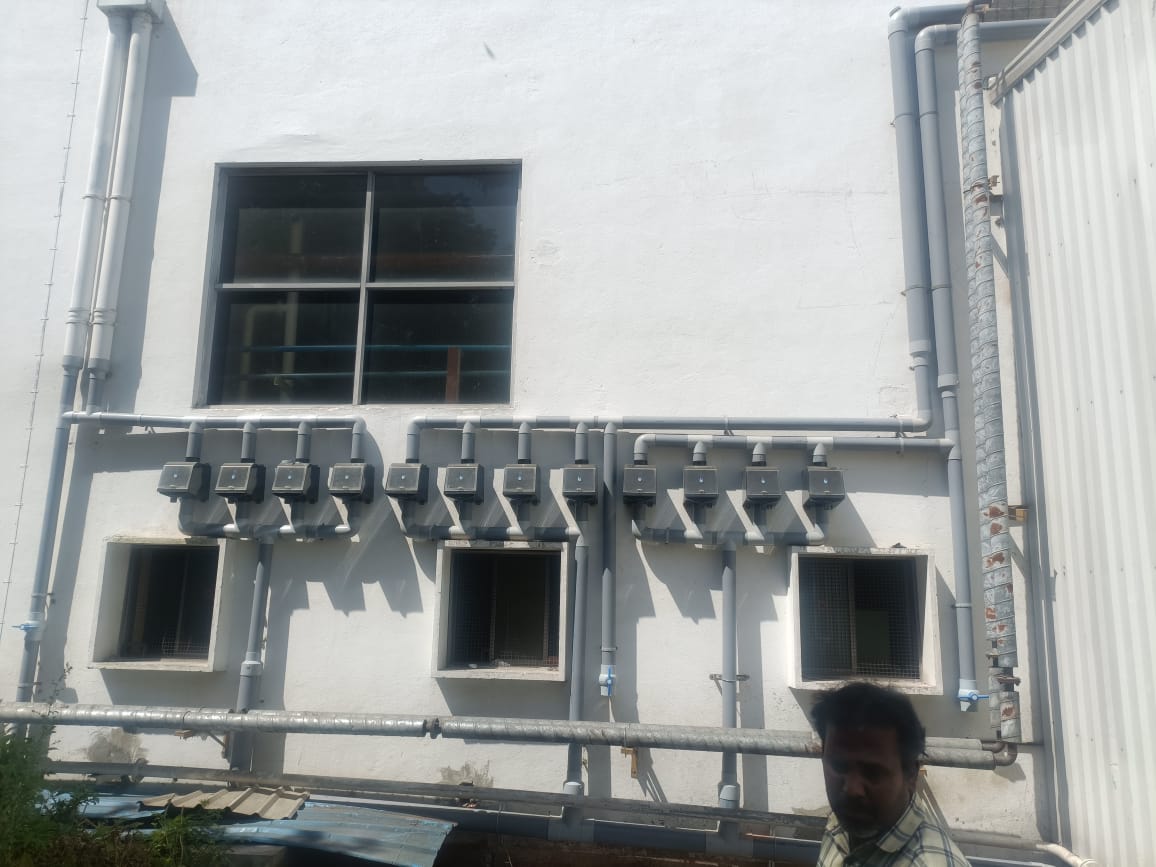

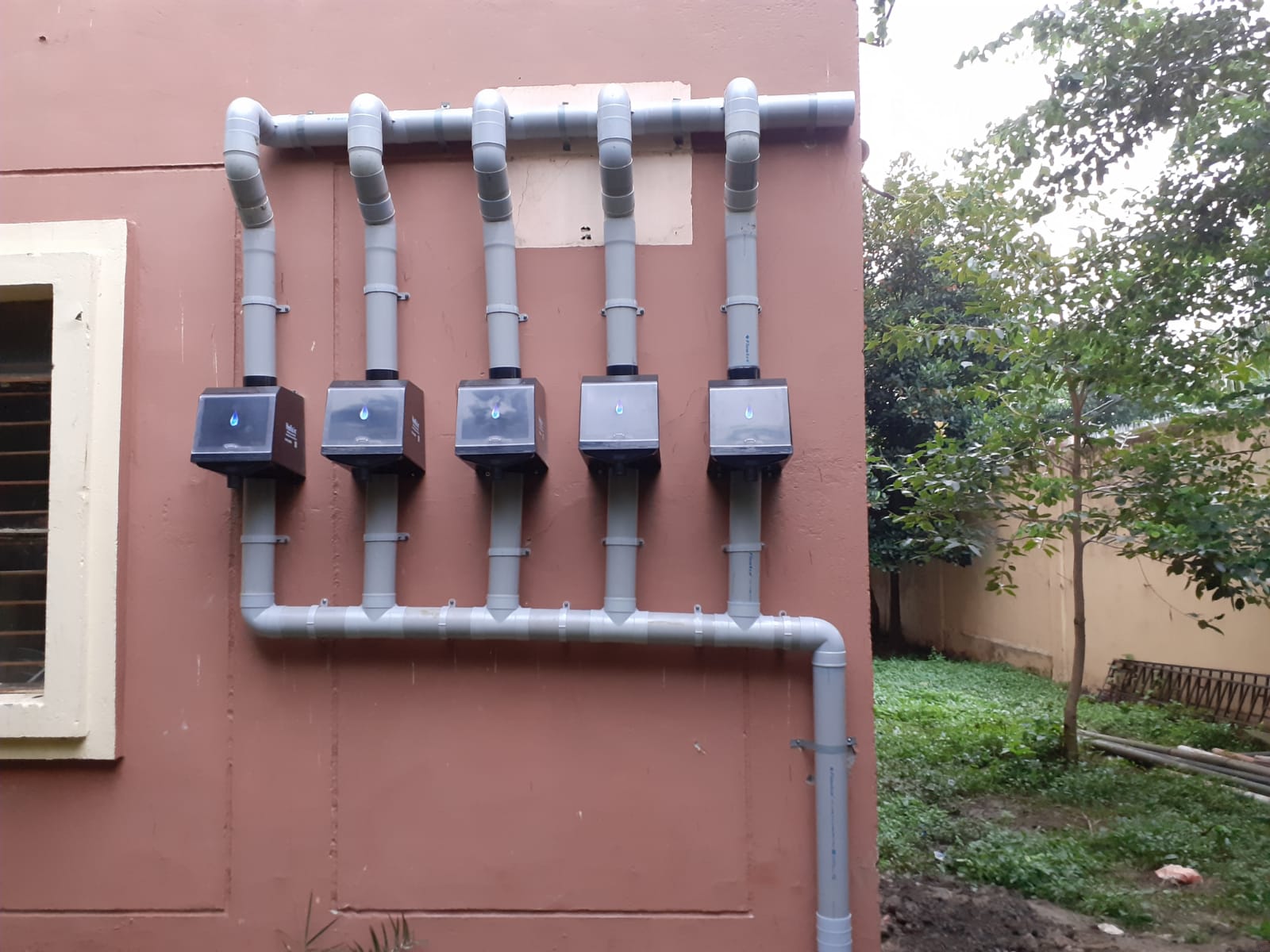

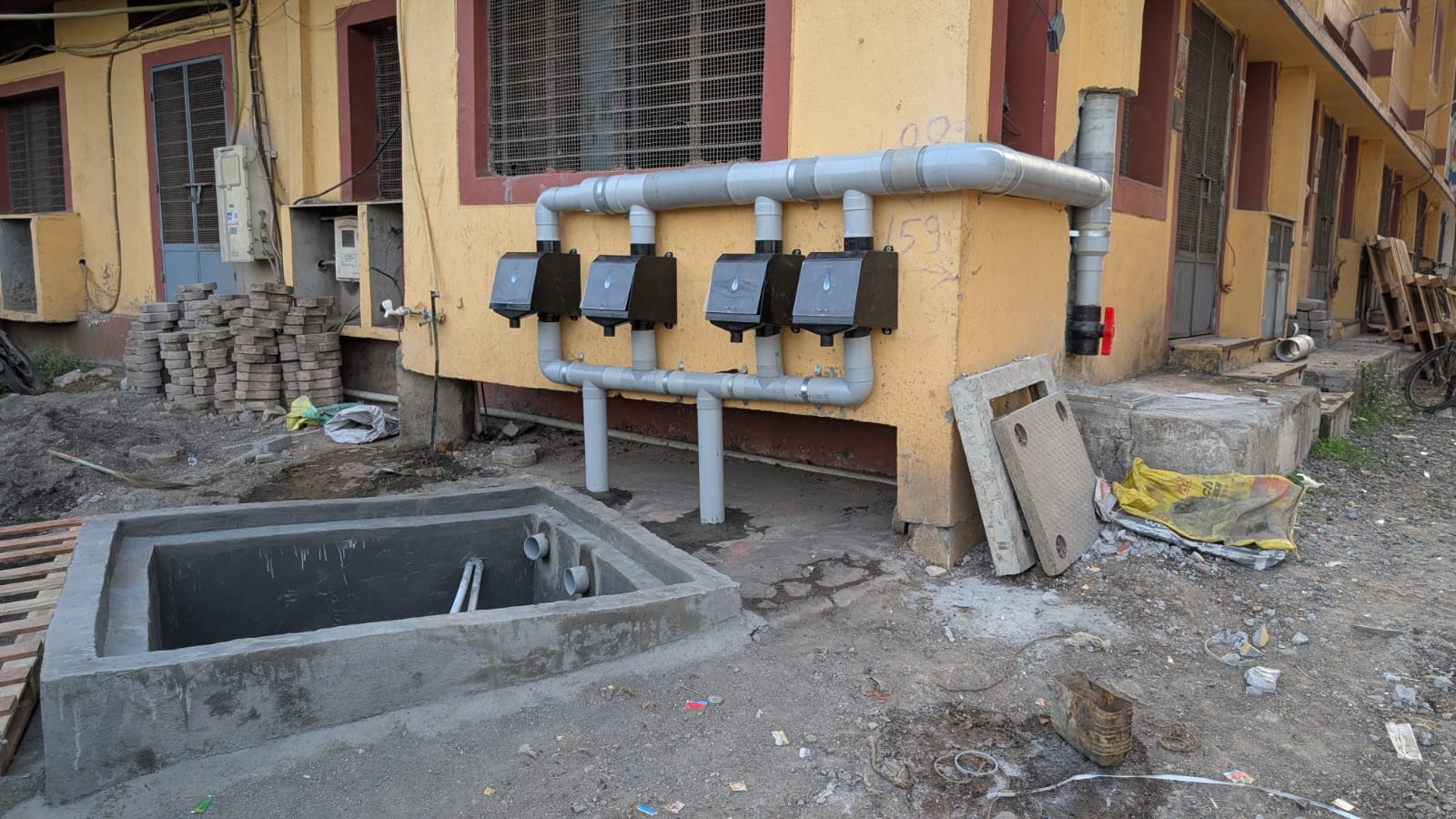

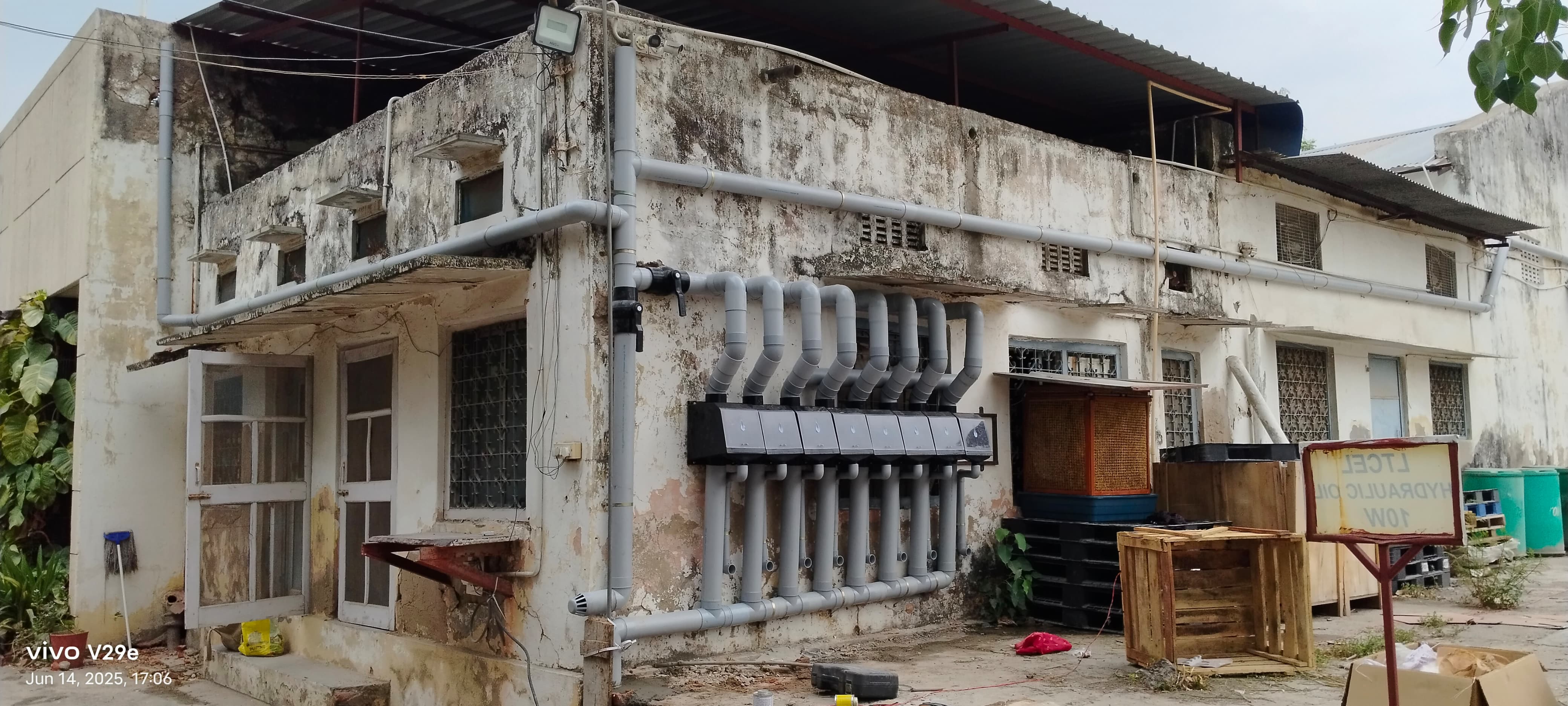

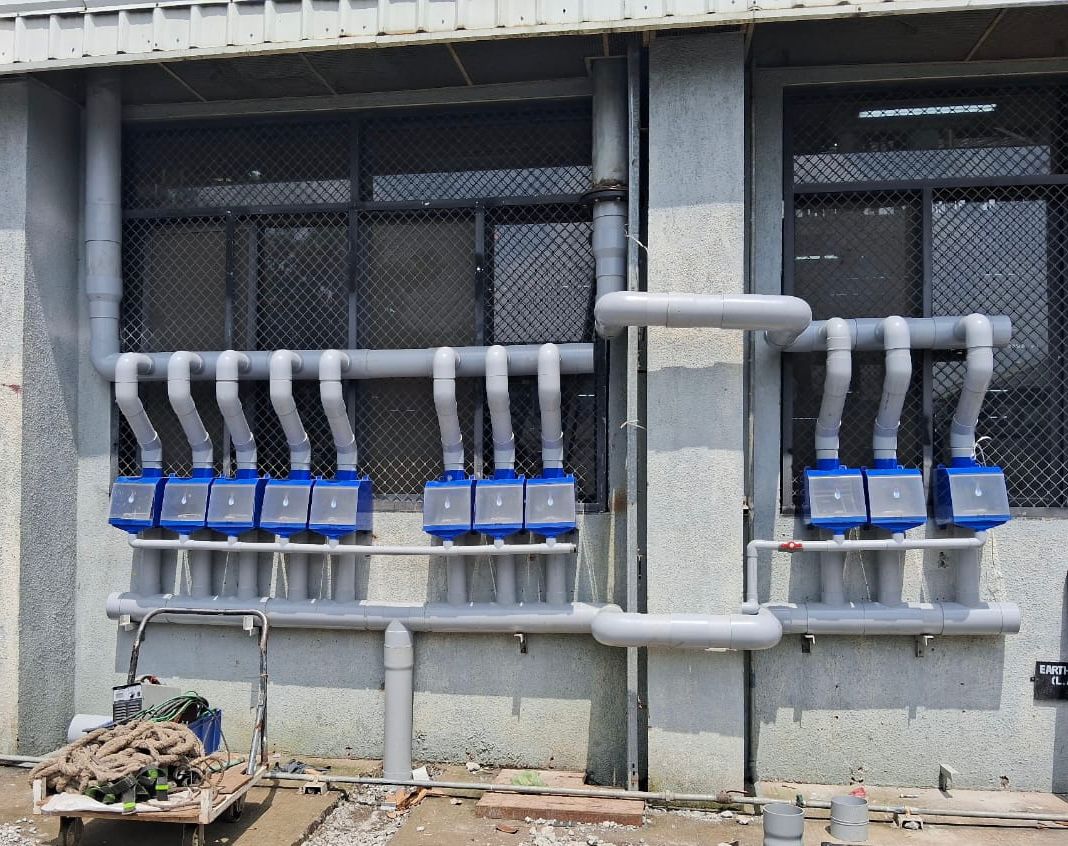

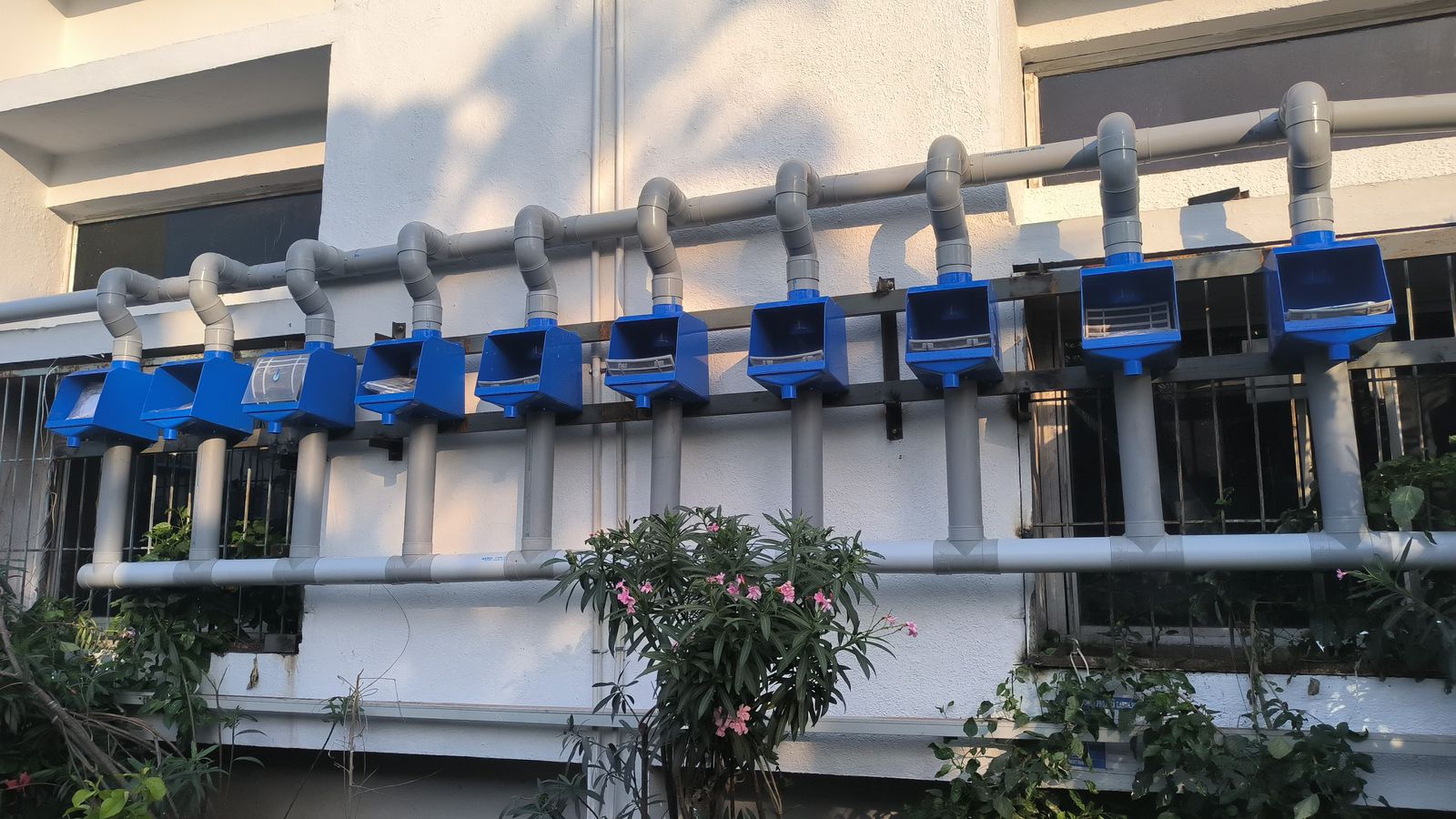

Successful Installations
NeeRain Rainwater Filter FAQ's
The main difference is material of construction of first filter element. In NRNSS 220 the first filter element is of SS304 ‘V’ wire material, In NRE140 the first filter element is of fiber cloth and In NRU 150 the first filter element is of HDPE double layers. The Second filter element is same in all three models, it is of Nylon material, 200 Micron size, 110 mm dia and 500 mm length.
The quality of water filtration is same in three models.
There is no wastage of water while harvesting rainwater. It is easy, effective and economical.
Yes please open this link https://www.youtube.com/watch?v=K0WrAJjhmHg
NeeRain works on reverse ‘Y’ principle. It filters rooftop rainwater without disturbing gravity flow of rainwater by preventing impurities.
Impurity outlet and front lid both acts as safety features in case of unforeseen heavy rainfall.
Inlet: 110 mm (4”), Outlet: 110 mm (4”), Impurity outlet: 50 mm (2”)
NeeRain covers 150 M2 (1500 Sq. ft.) of roof area.
First Filter element is of HDPE, 500 micron while second filter element is of Nylon, 200 micron.
Open transparent lid and take out filter element 1 and 2 and wash it under a running tap.
NeeRain’s Height is 1.25 ft, Width is 1 ft and Depth is 1 ft
Please install Tee on down pipe, provide flush valve at the end of Tee joint. On the other end of Tee joint, connect inlet of NeeRain. Keep the flush valve open for draining of first rainfall. After the first flush, just close the valve and rainwater will start flowing through outlet on Top.
