Rain Water Filter for Large Roofs
VRRF is a effective, efficient and economical rooftop rainwater harvesting filter for roof areas of 1000 Sq. meter and above. VRRF is compact, user friendly, flexible, modular and scalable for any size of roof. The three stages of filtration includes major, medium and micro filtration of rainwater. The micro filter element is non clogging, made out of SS 304 material. VRRF has separate outlet for disposal of impurities. Truly the best for Industrial habitats to be water secure.
Features of Rain Water Filter for Large Roofs

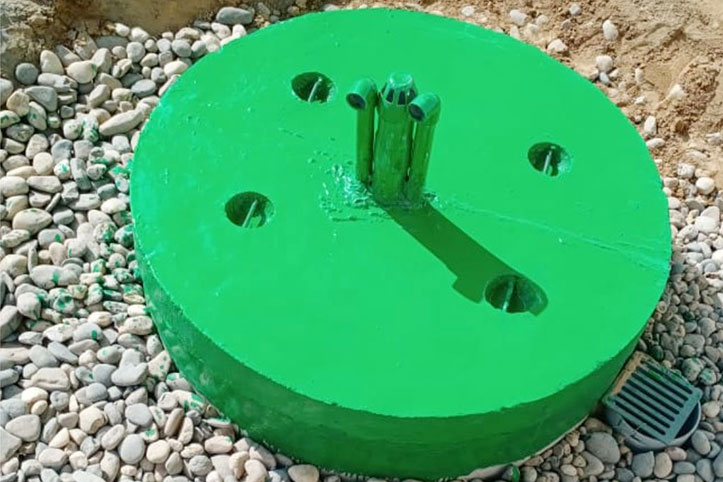

Rain Water Filter for Large Roofs Installation Snaps
Rainwater Filter for Large Roof FAQ's
Large rooftop rainwater filter are scientific, sensible and economical for large catchment roofs.

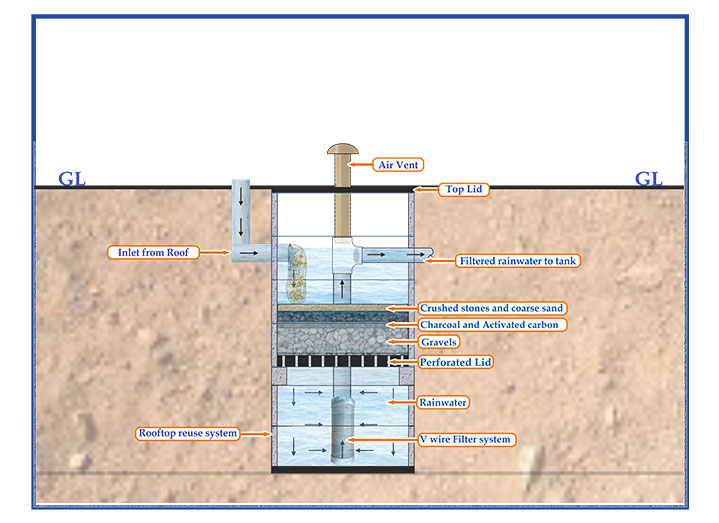

Large rooftop rainwater filter works on gravity and capillary action. Rainwater passes through Balloon, three filter arrays i.e. gravels, activated carbon, charcoal, coarse sand and non-clogging SS 304 filter element leaving behind impurities.
Over flow allows draining of excess water.
Inlet: 150 mm (6”), Outlet: 150 mm (6”), Over flow Drain outlet: 150 mm (6”)
Large rooftop Rainwater filter can cover 500 Sq. Meters of roof area.
Filter element is of 500 Micron. Filter element is made out of SS 304 material.
One can take out balloon, empty it, wash it and wash to filter media, SS filter element under a running tap and place it back.
Large rooftop rainwater filter has 3 ft dia and Depth is 6 ft.
Its’ easy. Please close the valve on inlet. This will allow draining of first rainfall Tee joint. Once you open valve, the rainwater will start flowing through outlet on Top.
