Rainy Rain Water Filter
The functioning of Self-cleaning filters is designed keeping in mind the facility of either one or multiple downspout outlets which can be utilized as per the requirement. The design is fabricated in tune with the hollow pipe leading into the filter inlet of the Rainy Filter.
The rainwater filter is designed to accept dual intensity (both low high intensity) loads and separates the dirt particles & debris entering along with the rain water into the filter inlet through the hollow pipe based on the principle of cohesion and centrifugal force along with self cleaning mechanism.
Since the filter element assembly is an open ended system it allows for free flow. The vertically placed steel mesh does not allow the accumulation of dirt, debris and leaves inside the filter. As such the complete filter assembly has an inbuilt self cleaning mechanism whereby the water or any other solid particles do not stagnate inside the vertical filter since it has an open end leading into the drain The design, stability and filter function efficiency is directly proportional to the intensity of rainfall. As the intensity and volume of rainfall increases, greater the efficiency of the filter. However, at any given point of time, the minimum efficiency of the filter ranges from 90 to 98% from outlets which can be utilized as per the requirement. The design is fabricated in tune with the hollow pipe leading into the filter inlet of the Rooftop Filter.
Features of Rainy Rain Water Filter

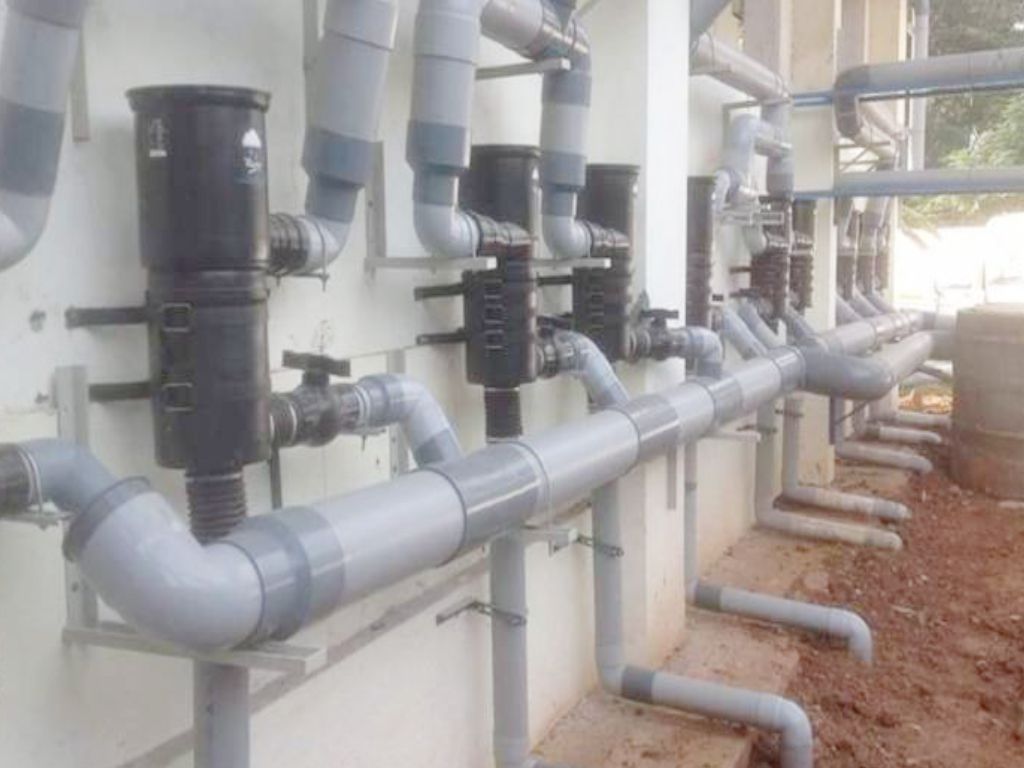

Successful Installations
Rainy Rainwater Filter FAQ's
Rainy is dual intensity, auto dirt diversion rainwater filter.
Rainy works on Centrifugal and Cohesive action. Rainwater passes through SS filter element allowing draining of impurities on line.
Open ended filter systems never stagnates water on roof. This acts as safety feature.
FL 100 : Inlet: 90 mm (3”), Outlet: 63 mm (4”), drain outlet: 90 mm (3”).
FL 200 : Inlet: 110 mm (4”), Outlet: 75 mm (4”), drain outlet: 90 mm (3”).
FL 300 : Inlet: 110 mm (4”), Outlet: 90 mm (3”), drain outlet: 90 mm (3”).
FL 500 : Inlet: 110 mm (4”), Outlet: 90 mm (3”), drain outlet: 110 mm (4”).
FL 100 : 110 Sq. Mtr, FL 200 : 225 Sq. Mtr, FL 300 : 350 Sq. Mtr, FL 500 : 500 Sq. Mtrs.
Filter element is made out of SS 304 material.
Filter element has 500 Micron mesh size.
One can take out filter screen, wash and clean it with brush under a running tap.
Its’ easy. Please keep valve on clean water outlet closed. This will allow draining of first rainfall from the drain outlet at bottom. Once you close the valve, the rainwater will start flowing through clean water outlet.
