UseRain
UseRain is a unique surface filtration technology designed to capture, filter and store pure rainwater from large open areas into lake, underground reservoir, tank or water body for various industrial and domestic non potable applications. Five stages of filtration with two 'Non clogging, SS V wire technology for filtration' make it ideal for any industrial premise to save millions of litres of fresh water.
Advantages of UseRain
Features of UseRain

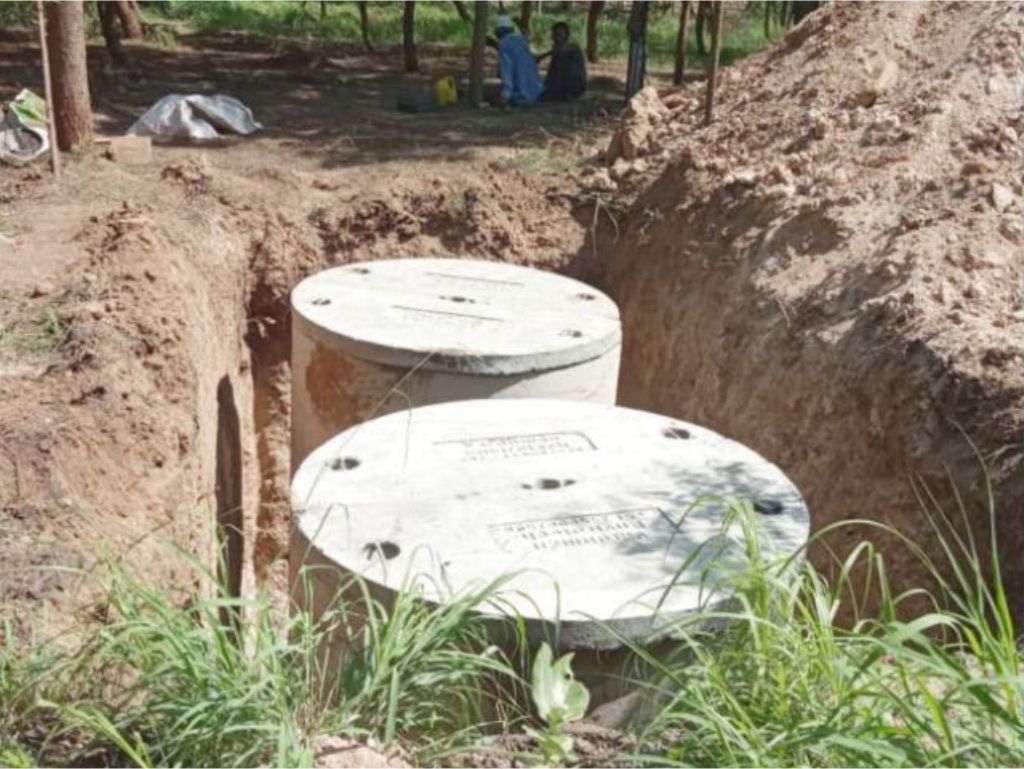

Successful Installations
UseRain FAQ's
Surface rainwater reuse system is ready to use surface filtration that captures rainwater falling on surface, filters it from physical impurities and diverts to underground tank or reservoir.
Surface rainwater reuse system has five stages of Major, medium and micro filtration that make huge volume of rain water available for utility applications.

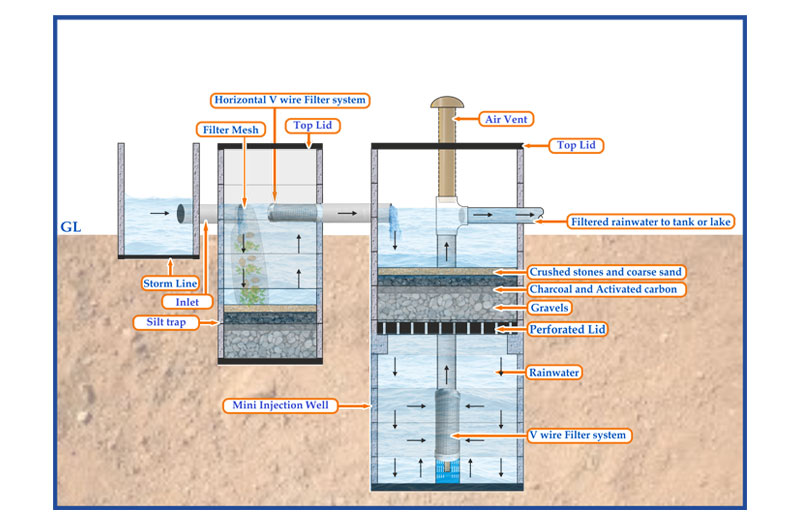

Surface rainwater reuse system captures water from loose surfaces, storm channel etc. Surface rainwater flows through Primary and Secondary filter modules. The primary module ( Silt Trap ) has three stage of filtration i.e. balloon, three filter arrays i.e. gravels, activated carbon, charcoal, coarse sand and one horizontal non-clogging SS 304 filter element. The secondary ( Main well ) has two stages of filtration again i.e. three filter arrays i.e. gravels, activated carbon, charcoal, coarse sand and one vertical non-clogging SS 304 filter element. Thus rainwater passes through total five stages of filtration by gravity and clean rainwater flows to the tank or reservoir through capillary action.
Inlet: 150 mm (6”), Outlet: 150 mm (6”), Over flow Drain outlet: 150 mm (6”).
Air vents : 1). 63 mm and 2). 32 mm.
Over flow allows draining of excess water.
It depends on type of surface catchment. Generally one Surface rainwater reuse system can cover approximately 1000 Sq. Meters of surface area.
Two Non Clogging filter elements. One in Silt Trap is of 150 mm dia and 500 mm length, with one end of non-clogging flat surface and second one is in Main well having 150 mm dia and 500 mm length, with one end of non-clogging flat surface and provision for air vent.
Both Filter elements are of 500 Micron and made out of SS 304 material.
It’s easy. One can take out balloon, empty it, wash it and wash to filter media, SS filter element under a running tap and place it back.
Surface rainwater reuse system is ready to use system made out of round precast modules.
Surface rainwater reuse system has silt trap of 4 ft dia and 4 ft depth. Main well has 4 ft dia and 12 ft depth.
